Mikrotik router board rb - 941 - 2nd - tc hap lite formato torre 650mhz cpu 32mb ram 4xlan 2.4ghz 802b - g - n 2x2 wireless

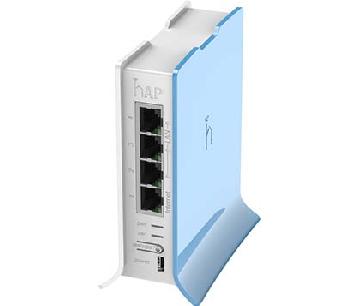

Mikrotik RB941-2nD-TC – RB/ 9412nDTC («hAP lite»)

The home Access Point lite (hAP lite) is an ideal little device for your

apartment,house or office.

It supports button triggered WPS, for the convenience of not typing a

complicated password when somebody wants to have wireless internet access,

and can also be told to change to cAP mode and join a CAPsMAN centrally

managed network by the push of a button.

Of course, the device runs RouterOS with all the features, bandwidth shaping,

firewall, user access control and many others.

The hAP lite is equipped with a powerful 650MHz CPU, 32MB RAM, dual chain

2.4GHz onboard wireless, four Fast Ethernet ports and a RouterOS L4 license.

USB power supply is included.

Order code

RB941-2nD-TC

CPU

QCA9531 650MHz CPU

Memory

32MB DDR RAM

Ethernet

4x 10/100 Mbit/s Ethernet with Auto-MDI/X

Wireless cards

Onboard dual chain 2.4GHz 802.11b/g/n QCA9531 wireless module,

10kV ESD protection on each RF port, WPS support via button

Extras

Reset switch

LEDs

Power LED, 4x Ethernet LED, user LED

Power input

Packaged with 5V DC 0.7A power adapter

Dimensions

124x100x54mm

Max consumption

3W at 5V

Operating Temp

-20C .. +70C tested

OS

MikroTik RouterOS, Level 4 license (AP support)

Product code RB941-2nD-TC

CPU nominal frequency 650 MHz

CPU core count 1

Size of RAM 32 MB

10/100 Ethernet ports 4

10/100/1000 Ethernet ports None

MiniPCI slots 0

MiniPCI-e slots 0

Wireless chip model QCA9533-BL3A

Wireless standards 802.11b/g/n

Number of USB ports 0

Power Jack 0

PoE in No

Supported input voltage 5 V – 5 V

PoE out No

Voltage Monitor No

PCB temperature monitor No

CPU temperature monitor No

License level 4

Antenna gain DBI 1.5

Current Monitor No

CPU QCA9533-BL3A

Max Power consumption 3W

SFP ports 0

SFP+ ports 0

Number of chains 2

Serial port None
